產(chǎn)品：

Micro-Lock Plus terminal retention force provides electrical reliability for applications in rugged environments. Rated at a 105?C operating temperature and 1.5A current rating, the Micro-Lock Plus Connector is ideal for general market applications. Rugged applications can be subject to shock, vibration or rough handling that can dislodge terminals and cause signal interference.

Micro-Lock Plus tin-bismuth plating offers reliability and lower applied costs. Tin plating can sometimes cause whiskering and signal intermittency, while more durable gold plating comes with a higher cost.

Micro-Lock Plus Connectors have a positive latch that provides an audible click, ensuring a secure mate. In microminiature wire-to-board applications, operators can sometimes mistakenly fail to ensure connectors are fully mated. This, in turn, can lead to end-product failure.

Micro-Lock Plus Connector System is the smallest connector currently on the market with a positive lock. Engineers no longer have to choose between compactness and retention security. Often designers have to forgo a positive lock on a connector due to space constraints, sacrificing retention security.

產(chǎn)品特點：

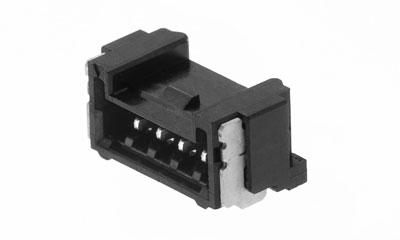

Smallest 1.25mm-pitch connector with positive lock

Delivers secure mating retention without sacrificing compactness

Tin-bismuth terminals

Prevents whiskering for a clean and uninterrupted signal

Supports terminal ruggedness and reliability

Inner lock for dual-row versions; outer lock for single-row versions

Strengthens lock for more reliable connection

Withstands up to 105?C operating temperature

Meets automotive industry requirements

Withstands harsh environments

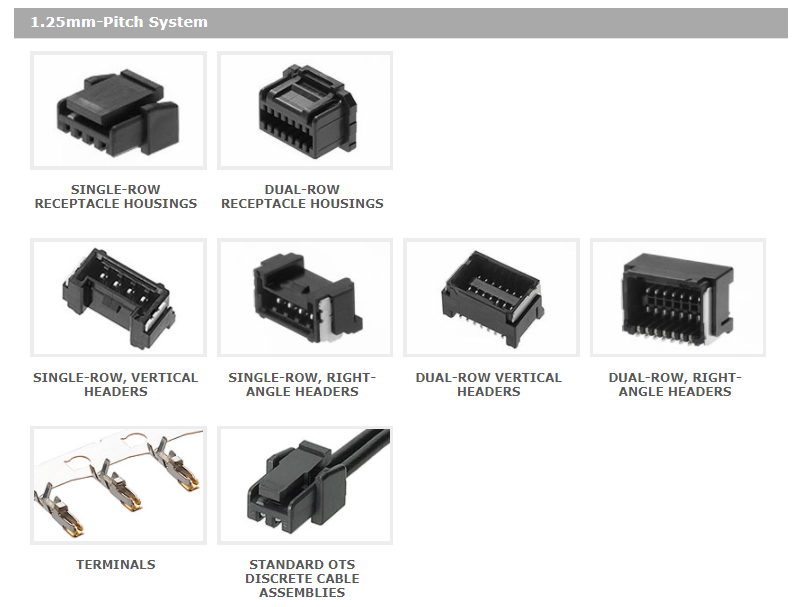

2 to 42 circuits, single and dual rows, vertical and horizontal plug configurations

Offers design flexibility

Wide positive latch that delivers audible click

Provides secure mating retention

Ensures proper mating

Robust metal solder tabs

Provides secure PCB retention and strain relief to solder joints

Dual contact terminal design

Offers secure contact and terminal retention

應(yīng)用：

Automotive

Internal connection with other units

Steering wheel, paddle shift, combination switches

Consumer

Air conditioner

Desktop PCs

Drones

Gaming Machines

Laser printers

Power tools

Vacuum cleaners

White goods

This is not a definitive list of applications for this product. It represents some of the more common uses.
